Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: DBDH-1500
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Web Height: |
300-1500mm |
Web Thickness: |
5-16mm |
Flange Width: |
150-500mm |
Flange Thickness: |
5-32mm |
Beam Length: |
4000-15000mm |
Maximum Beam Weight: |
≤8° |
Web Height: |
300-1500mm |
Web Thickness: |
5-16mm |
Flange Width: |
150-500mm |
Flange Thickness: |
5-32mm |
Beam Length: |
4000-15000mm |
Maximum Beam Weight: |
≤8° |

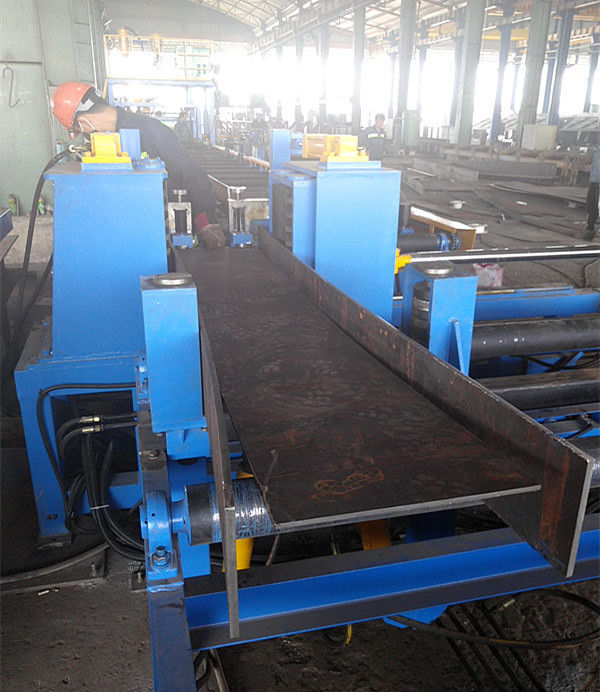

DBDH-1500 End assembling machine
1. Introduction
Ends assembling machine will assemble on-specification plates into H shape, and spot welding, forming at the end. Ends assembling machine is made up of main machine, roller conveyor, hydraulic system and electric control system.
Main machine consists of web elevation mechanism, ends alignment device and conveying transmission mechanism. All the movements use hydraulic system driving.
Roller conveyor is driven by motor reducing gear to rotate, then drive the work-piece into the host machine. There are hydraulic overturning mechanisms on both sides of roller which can turn up and adsorb the flange plates on both sides of the roller onto magnetic guide wheel, so that it can make the both side of the standing flange plate form H shape with the center flatwised web plate.
2. Technical parameters
● Web height: 300-1500mm
● Web thickness: 5-16mm
● Flange width: 150-500mm
● Flange thickness: 5-32mm
● Beam length: 4000-15000mm
● Maximum beam weight: 4000kg
● Cross section drift angle: ≤8°
| ● Web height | 300-1500mm |
| ● Web thickness | 5-16mm |
| ● Flange width | 150-500mm |
| ● Flange thickness | 5-32mm |
| ● Beam length | 4000-15000mm |
| ● Maximum beam weight | 4000kg |
| ● Cross section drift angle | ≤8° |
3. Supply range
● Main machine: 1 set
● Roller conveyor: 3.4m * 4pcs
● Side overturning device: front/ back side overturn frame, magnetic wheel
● Hydraulic system: hydraulic pump station, hydraulic cylinder and oil pipe
● Electric control system: electric control box
● Note: Co2 welder provide by buyer and with manual assembling
