HYJ-80 H Beam Welding Machine Flange Hydraulic Straightening Machine H Beam Line

Name: HYJ-80 H Beam Welding Machine Flange Hydraulic Straightening Machine H Beam Line
Brand: FRIENDSHIP MACHINERY CO,LTD
SKU: HYJ-60
Price: 2,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Friendship Machinery

Certification: CE, ISO

Model Number: HYJ-60

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Customized

Packaging Details: Wooden box, Standard Sea Packing

Delivery Time: 20 To 30 Working Days

Payment Terms: T/T, L/C

Supply Ability: 5-30 Sets Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                h beam welding machine 200mm, h beam welding machine 800mm, h beam line 33KW


- Maximum System Pressure:	Hydraulic Straightening Machine	Width Of The Flange::	200-800mm
Thickness Of The Flange::	10-80mm	Height Of The Web::	≥350mm
Total Power::	33KW	Hydraulic Driven Motor::	11KW

- Maximum System Pressure:	Hydraulic Straightening Machine
Width Of The Flange::	200-800mm
Thickness Of The Flange::	10-80mm
Height Of The Web::	≥350mm
Total Power::	33KW
Hydraulic Driven Motor::	11KW

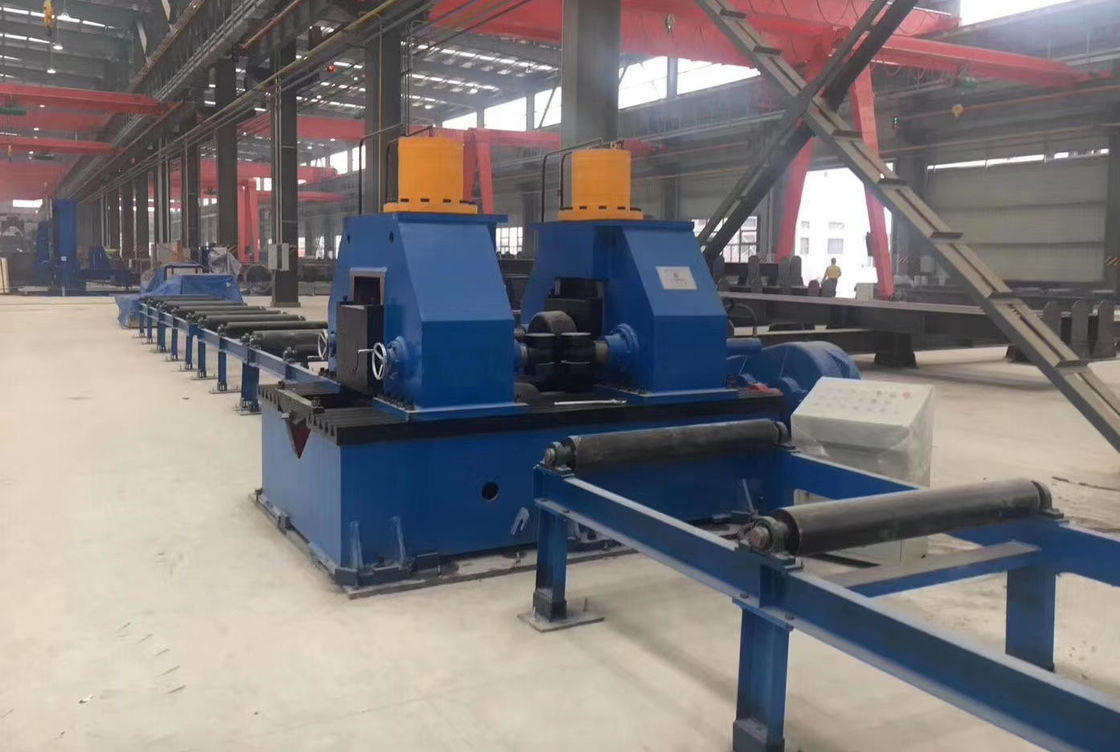

HYJ-80 H Beam Welding Machine Flange Hydraulic Straightening Machine H Beam Line

HYJ-80 H beam flange hydraulic straightening machine

1. Technical parameters

● Width of the flange: 200-800mm

● Thickness of the flange: 10-80mm

● Height of the web: ≥350mm

● Total power: 33KW

● Driven motor: 22KW

● Hydraulic driven motor: 11KW

● System maximum pressure: 32Mpa

● Straightening speed: ≈6350mm/min

● Relationship between flange thickness and flange width:

T	10-16	16-24	24-30	30-34	36-40	42-50	50-60	70-80
W	≥200	≥250	≥350	≥400	≥450	≥600	≥700	≥800

● Width of the flange	200-800mm
● Thickness of the flange	10-80mm
● Height of the web	≥350mm
● Total power	33KW
● Driven motor	22KW
● Hydraulic driven motor	11KW
● System maximum pressure	32Mpa
● Straightening speed	≈6350mm/min

2. Performance and features

HYJ-80 H beam hydraulic straightening machine is specially equipment used to straighten the deformed H beam flange. The hydraulic straightening machine has a large capacity of straighten capacity, large range and high automation. Straightening wheel and drive roller are made of good alloy steel and through advanced heat treatment process to guarantee long-term operation.

HYJ-80 H Beam Welding Machine Flange Hydraulic Straightening Machine H Beam Line 0
