Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: BXS-1530
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Girder Width: |
2000mm |
Horizontal Cutting Length: |
1500mm |
Rail Length: |
3500mm (acceptable Customized) |
Longitudinal Cutting Length: |
3000mm (acceptable Customized) |
Cutting Speed: |
20-2000mm/min |
Free Speed: |
4000mm/min |
Torch Lift Stroke: |
80-150mm |
Girder Width: |
2000mm |
Horizontal Cutting Length: |
1500mm |
Rail Length: |
3500mm (acceptable Customized) |
Longitudinal Cutting Length: |
3000mm (acceptable Customized) |
Cutting Speed: |
20-2000mm/min |
Free Speed: |
4000mm/min |
Torch Lift Stroke: |
80-150mm |

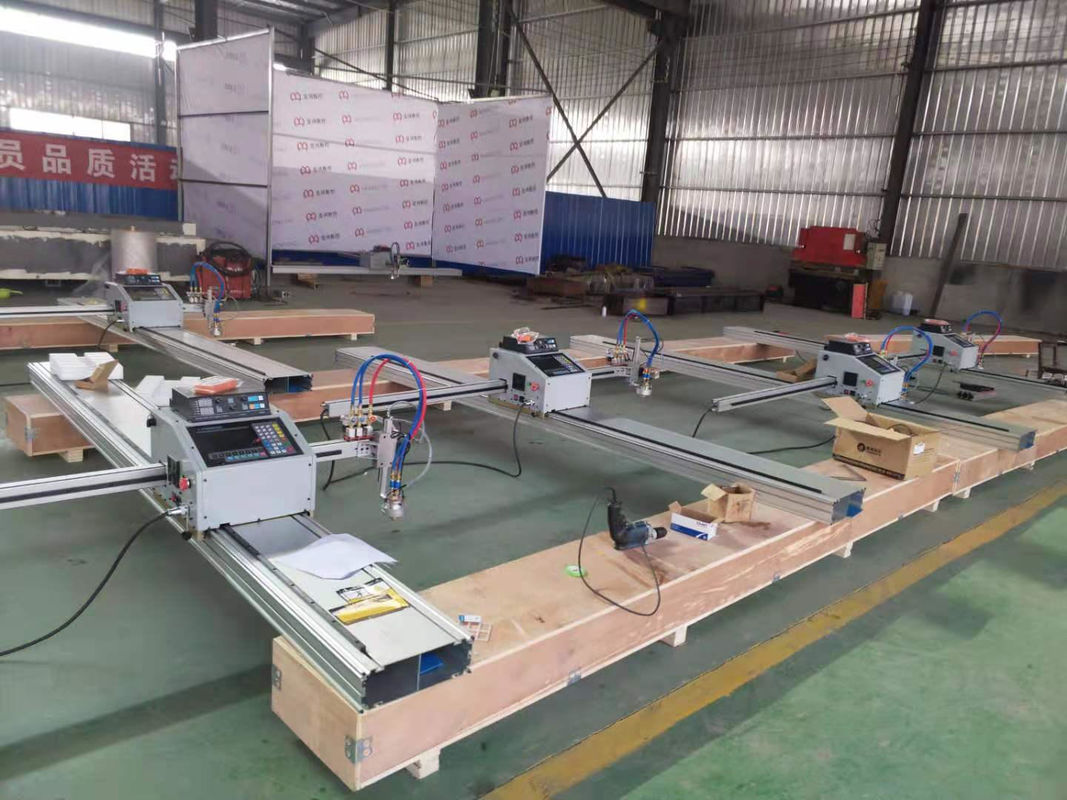

BXS-1530 Portable type plasma cutting machine
1. Technical parameters
| No. | Item | Specification |
| 1 | Girder width | 2000mm |
| 2 | Horizontal cutting length | 1500mm |
| 3 | Rail length | 3500mm (acceptable customized) |
| 4 | Longitudinal cutting length | 3000mm (acceptable customized) |
| 5 | Plasma cutting torch | 1 set |
| 6 | Plasma cutting thickness | Depend on plasma power capacity |
| 7 | Cutting speed | 20-2000mm/min |
| 8 | Free speed | 4000mm/min |
| 9 | Torch lift stroke | 80-150mm |
| 10 | Precision | ±0.2mm/m |
| 11 | Working voltage | 220V, 50HZ |
| 12 | Plasma source | Huayuan, China or Hypertherm, USA |
| 13 | Nesting software | Beijing StarCAM, China |
| 14 | CNC control system | Shanghai Jiaoda, China |
| 15 | Arc-pressure height controller | Shanghai Jiaoda, China |
| 16 | Structure | High hardness aluminum alloy |
