Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: FJG-3015
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Model: |
Fiber Laser Cutting Machine |
Laser Brand: |
Raycus/ Max/ IPG |
Laser Wavelength: |
1080nm±5 |
Maximum Cutting Thickness: |
Depend On Laser Generator |
Total Power Consumption: |
About 3600W |
Working Size: |
3000*1500mm |
Model: |
Fiber Laser Cutting Machine |
Laser Brand: |
Raycus/ Max/ IPG |
Laser Wavelength: |
1080nm±5 |
Maximum Cutting Thickness: |
Depend On Laser Generator |
Total Power Consumption: |
About 3600W |
Working Size: |
3000*1500mm |

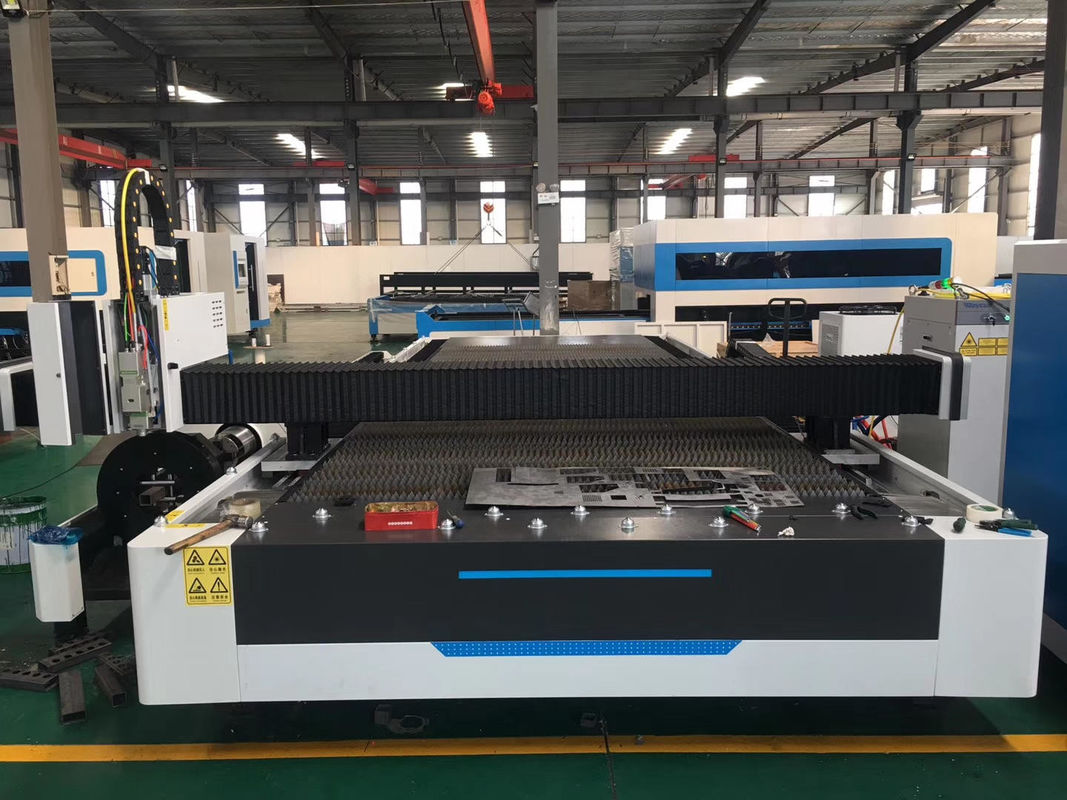

FJG-3015 CNC Fiber Laser Cutting Machine
1. Structure & features
● Excellent beam quality: smaller focused spot make more efficient work and cutting quality.
● High cutting speed: its speed is twice of the same Co2 laser cutting machine.
● High stability: the world’s top fiber laser generator makes stable performance, and the key components of the machine owns the life of up to 100,000 hours.
● High electro-optical conversion efficiency: fiber laser is three times higher than CO2 laser and saving energy.
● Low use-cost: whole machine consume less energy, only 20%-30% of traditional CO2 laser machine.
● Low using cost: no laser working gas, it is by fiber optic transmission, without lens reflecting, can save a lot of maintenance costs.
● Smart operation and easy maintenance: optical fiber transmission, no need to adjust the optical path.
● Super flexible light guide effect: compact structure, satisfies flexible processing requirements.
2. Technical parameters
| Model | Fiber laser cutting machine |
| Laser brand | Raycus/ Max/ IPG |
| Laser wavelength | 1080nm±5 |
| Maximum cutting thickness | Depend on laser generator |
| Total power consumption | About 3600W |
| Working size | 3000*1500mm |
| Maximum cutting speed |
0-80m/min (depending on the material and thickness) |
| X, Y, Z axis orientation precision | ≤±0.05mm/m |
| X, Y, Z axis repeat precision | ≤±0.03mm/m |
| Minimum line width | ≤0.15mm |
| Maximum empty running speed | 120m/min |
| Driving way | Fuji servo motor system |
| Transmission way |
Y-axis imported gear rack double driver, X-axis imported ball screw |
| Cooling system | Water cooling |
| Continous working time | 24 Hours |
| Environment temperature | 0-35°C |
| Power requirements | 220V, 50/ 60HZ or customized |
