Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: CWR-5 - CWR-1200
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Pipe Diameter Range: |
Φ250-2300mm |
Loading Capacity: |
5tons To 1200ton |
Rubber Roller: |
Φ250*100mm |
Metal Roller: |
2*Φ240*20mm |
Name: |
Pipe Welding Rotator |
Pipe Diameter Range: |
Φ250-2300mm |
Loading Capacity: |
5tons To 1200ton |
Rubber Roller: |
Φ250*100mm |
Metal Roller: |
2*Φ240*20mm |
Name: |
Pipe Welding Rotator |

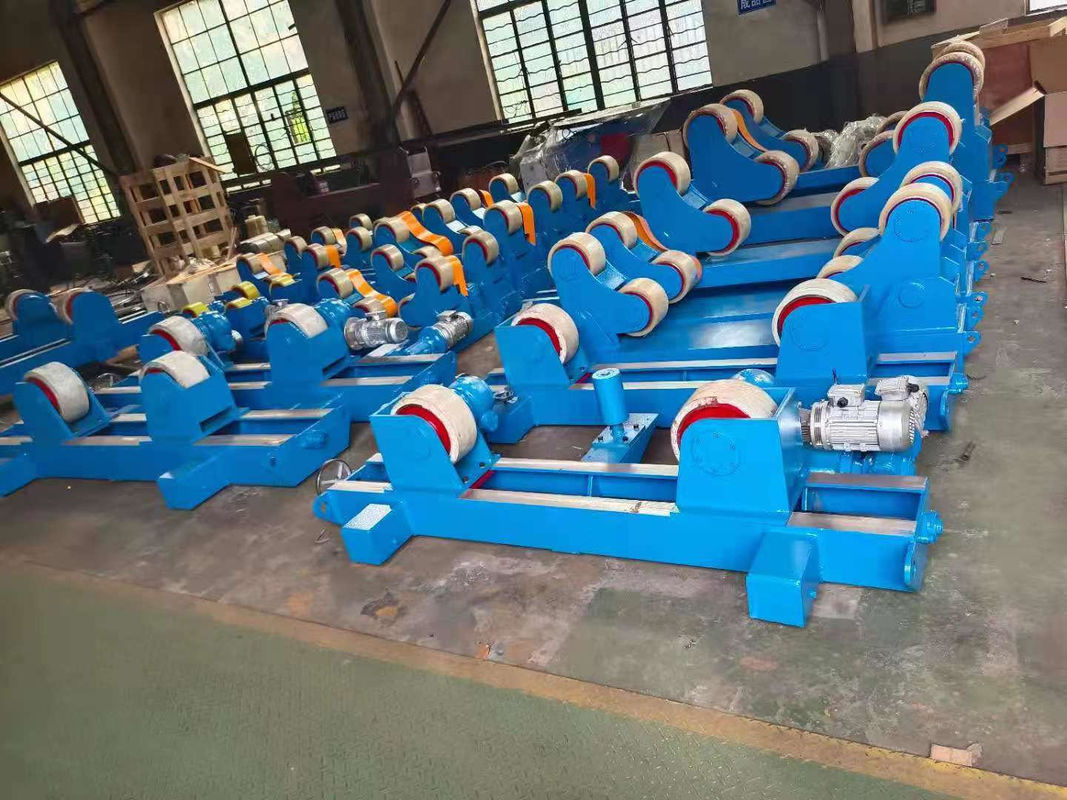

Pipe welding rotator/ Welding turning roller (conventional type)
1. Introduction
CWR series conventional welding rotator is used for metal cylinder, pipe or tank automatic girth and longitudinal seam welding. It is composed of power welding rotator and idler welding rotator, and the welding rotator space can be adjusted by bolt or screw. It has the features of reliable quality, good performance, easy operation and wide application.
2. Technical parameters
| Model | Loading capacity | Pipe diameter range | Roller dimension | Motor | |
| Rubber roller | Metal roller | ||||
| CWR-5 | 5tons | Φ250-2300mm | Φ250*100mm | 2*Φ240*20mm | 2*0.37kw |
| CWR-10 | 10tons | Φ320-2800mm | Φ300*120mm | 2*Φ290*25mm | 2*0.55kw |
| CWR-20 | 20tons | Φ500-3500mm | Φ350*120mm | 2*Φ340*30mm | 2*1.1kw |
| CWR-40 | 40tons | Φ600-4200mm | Φ400*120mm | 2*Φ390*40mm | 2*1.5kw |
| CWR-60 | 60tons | Φ700-5000mm | Φ450*120mm | 2*Φ440*50mm | 2*2.2kw |
| CWR-80 | 80tons | Φ700-5500mm | Φ500*120mm | 2*Φ490*60mm | 2*3kw |
| CWR-100 | 100tons | Φ700-6000mm | Φ500*120mm | 2*Φ490*80mm | 2*3kw |
| CWR-150 | 150tons | Φ1000-6000mm | / | Φ500*260mm | 2*4kw |
| CWR-250 | 250tons | Φ1000-7500mm | / | Φ660*260mm | 2*5.5kw |
| CWR-400 | 400tons | Φ1000-7500mm | / | Φ700*300mm | 2*5.5kw |
| CWR-500 | 500tons | Φ1000-8000mm | / | Φ800*350mm | 2*7.5kw |
| CWR-600 | 600tons | Φ1500-8500mm | / | Φ850*360mm | 2*7.5kw |
| CWR-800 | 800tons | Φ1500-9000mm | / | Φ900*380mm | 2*11kw |
| CWR-1000 | 1000tons | Φ1500-10000mm | / | Φ1000*350mm | 2*15kw |
| CWR-1200 | 1200tons | Φ1500-12000mm | / | Φ1000*450mm | 2*15kw |
