Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: WM1515-WM6060
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Name: |
Pipe Welding Manipulator |
Vertical Stroke: |
1500mm-6000MM |
Horizontal Stroke: |
1500mm-6000MM |
Lift Speed: |
0.3m/min To 0.9m/min |
End Loading Capacity: |
100kg-300kg |
Rotary Way: |
Manual Or Auto |
Name: |
Pipe Welding Manipulator |
Vertical Stroke: |
1500mm-6000MM |
Horizontal Stroke: |
1500mm-6000MM |
Lift Speed: |
0.3m/min To 0.9m/min |
End Loading Capacity: |
100kg-300kg |
Rotary Way: |
Manual Or Auto |

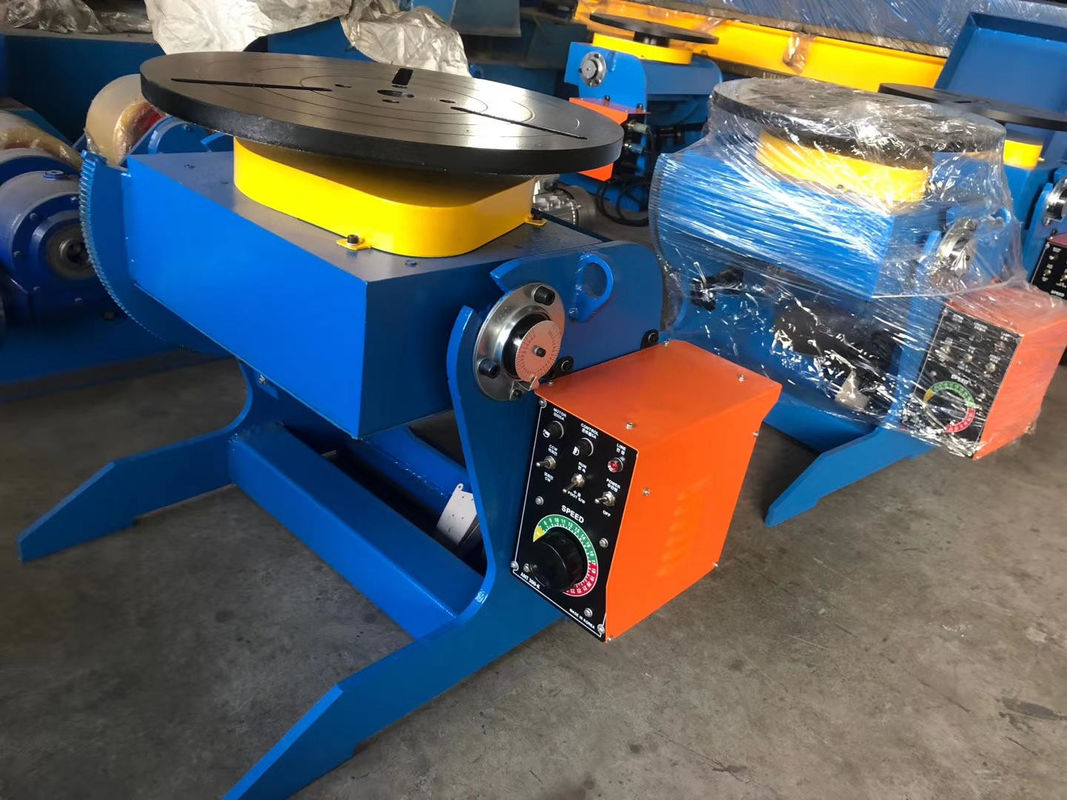

Pipe welding positioner
1. Introduction
Automatic welding center is mainly composed of welding manipulator, welding rotator/ welding positioner and welding source. When working, the fist is to make piece on the welding rotator and turn welding rotator to make the work-piece stay to weld by process requirements. Then make welding torch adjust to a certain welding position through kinds of movement of welding manipulator. At the last, start welding machine and rotate work-piece by welding rotator to realize automatic welding.
2. Technical parameters
| Model | Loading capacity | Rotary speed | Tilt degree |
Worktable size |
Motor | |
| Rotary | Tilt | |||||
| WP-1 | 1tons | 0.05-0.5rpm | 0-120° | Φ1200mm | 1.1kw | 1.5kw |
| WP-2 | 2tons | 0.05-0.5rpm | 0-120° | Φ1400mm | 1.1kw | 1.5kw |
| WP-3 | 3tons | 0.05-0.5rpm | 0-120° | Φ1400mm | 1.5kw | 2.2kw |
| WP-5 | 5tons | 0.05-0.5rpm | 0-120° | Φ1500mm | 2.2kw | 3kw |
| WP-10 | 10tons | 0.02-0.2rpm | 0-120° | Φ2000mm | 3kw | 5.5kw |
| WP-15 | 15tons | 0.015-0.15rpm | 0-120° | Φ2200mm | 3kw | 5.5kw |
| WP-20 | 20tons | 0.015-0.15rpm | 0-120° | Φ2300mm | 4kw | 7.5kw |
| WP-30 | 30tons | 0.015-0.15rpm | 0-120° | Φ2500mm | 7.5kw | 11kw |
| WP-40 | 40tons | 0.015-0.15rpm | 0-120° | Φ2500mm | 11kw | 11kw |
| WP-50 | 50tons | 0.015-0.15rpm | 0-120° | Φ3000mm | 11kw | 15kw |
| WP-100 | 100tons | 0.015-0.15rpm | 0-120° | Φ4000mm | 15kw | 18.5kw |
