Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: QC12Y
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Model: |
QC12Y 4*2500 |
Sheet Thickness: |
4mm-8mm |
Sheet Width: |
2500mm To 4000mm |
Strokes: |
12min-1 - 18min-1 |
Back Gauge: |
20-600mm |
Shearing Angle: |
1.5 |
Motor: |
4kw To 7.5kw |
Name: |
Metal Sheet Shearing Machine |
Model: |
QC12Y 4*2500 |
Sheet Thickness: |
4mm-8mm |
Sheet Width: |
2500mm To 4000mm |
Strokes: |
12min-1 - 18min-1 |
Back Gauge: |
20-600mm |
Shearing Angle: |
1.5 |
Motor: |
4kw To 7.5kw |
Name: |
Metal Sheet Shearing Machine |

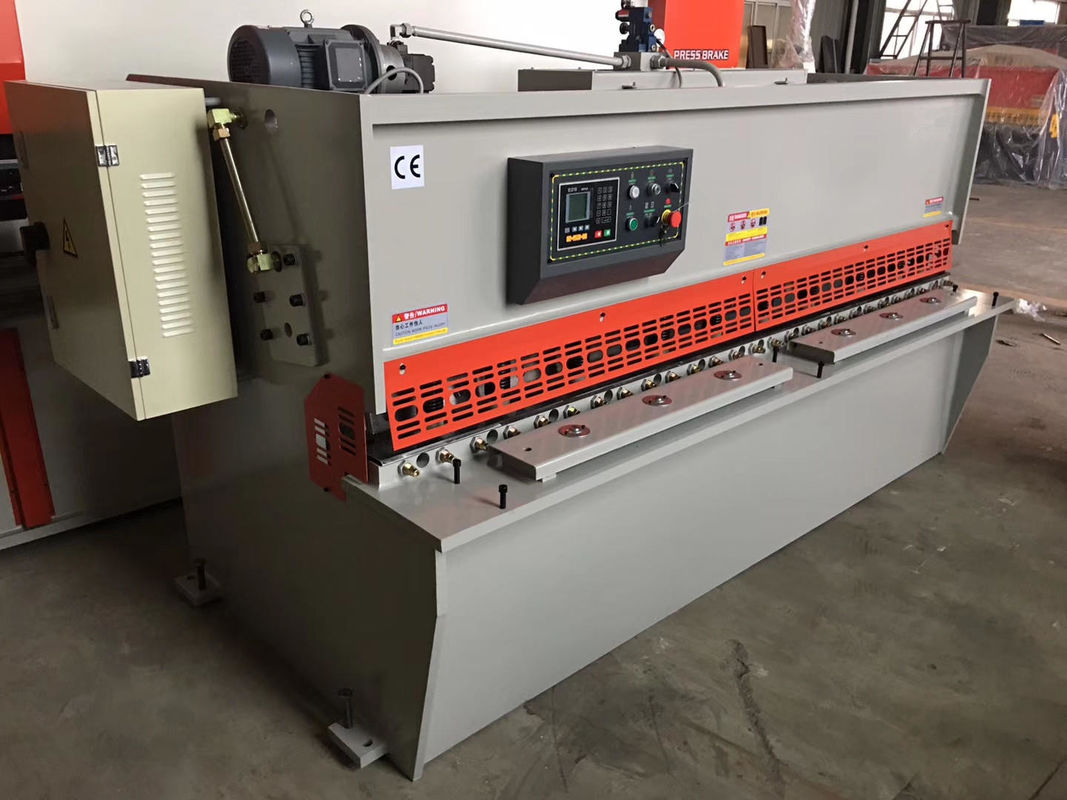

QC12Y series hydraulic type swing shearing machine
1. Introduction
● Hydraulic drive, swing beam, return of knife is smooth and prompt by accumulator nitrogen cylinder. All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability
● Knife shelf adopt step-less adjustment, permit micro adjustment with mechanical back gauge device, digital display movement of back gauge and shear time.
● The stroke and frequency of shearing can be controlled; the machine has the function of single
shearing and automatic continuous shearing.
● Controller: E21S controller specialized used in cutting machine.
2. Technical parameters
| Model | Sheet thickness | Sheet width | Strokes | Back gauge | Shearing angle | Motor |
| QC12Y 4*2500 | 4mm | 2500mm | 18min-1 | 20-600mm | 1.5 | 4kw |
| QC12Y 4*3200 | 4mm | 3200mm | 18min-1 | 20-600mm | 1.5 | 5.5kw |
| QC12Y 4*4000 | 4mm | 4000mm | 12min-1 | 20-600mm | 1.5 | 5.5kw |
| QC12Y 6*2500 | 6mm | 2500mm | 18min-1 | 20-600mm | 1.5 | 7.5kw |
| QC12Y 6*3200 | 6mm | 3200mm | 14min-1 | 20-600mm | 1.5 | 7.5kw |
| QC12Y 6*4000 | 6mm | 4000mm | 12min-1 | 20-600mm | 1.5 | 7.5kw |
| QC12Y 8*2500 | 8mm | 2500mm | 14min-1 | 20-600mm | 1.5 | 7.5kw |
