Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: WC67Y
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Pressure: |
400kN - 3000kN |
Thickness: |
20mm To 40mm |
Width: |
2500mm To 8000mm |
Upper Roller Diameter: |
340mm To 600mm |
Product: |
Sheet Metal Press Brake |
Motor: |
15kw |
Pressure: |
400kN - 3000kN |
Thickness: |
20mm To 40mm |
Width: |
2500mm To 8000mm |
Upper Roller Diameter: |
340mm To 600mm |
Product: |
Sheet Metal Press Brake |
Motor: |
15kw |

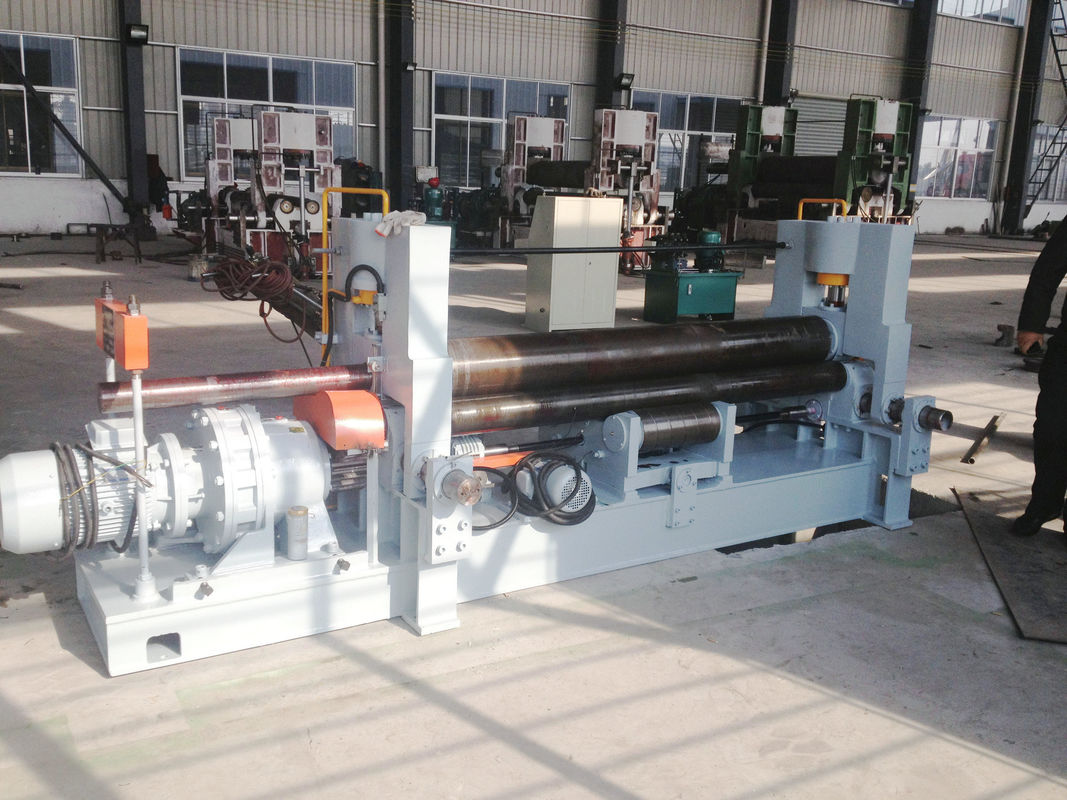

W11Y series hydraulic 3-rollers rolling machine
1. Introduction
This is 3 roller hydraulic symmetrical plate rolling machine, upper roller is in the center position over two bottom rollers, it vertical lifting up and down through hydraulic oil in cylinder acting on the piston. 2 bottom rollers are main driven rollers, they do rotation movement and supply torque of the device through the output gear box meshes with bottom roller gear. The structure of the device is compact, easy to operate and maintain.
2. Technical parameters
| Model | Thickness | Width | Upper roller diameter | Bottom roller diameter | Center distance | Motor | |
|
Main motor |
Vice motor |
||||||
| W11Y-20*2500 | 20mm | 2500mm | 340mm | 260mm | 430mm | 15kw | 7.5kw |
| W11Y-20*3000 | 20mm | 3000mm | 370mm | 300mm | 480mm | 22kw | 7.5kw |
| W11Y-20*4500 | 20mm | 4500mm | 420mm | 240mm | 550mm | 22kw | 7.5kw |
| W11Y-20*6000 | 20mm | 6000mm | 540mm | 350mm | 600mm | 30kw | 11kw |
| W11Y-20*8000 | 20mm | 8000mm | 600mm | 390mm | 750mm | 37kw | 15kw |
| W11Y-25*2500 | 25mm | 2500mm | 370mm | 270mm | 480mm | 22kw | 7.5kw |
| W11Y-25*3000 | 25mm | 3000mm | 420mm | 360mm | 550mm | 30kw | 11kw |
| W11Y-25*3500 | 25mm | 3500mm | 450mm | 390mm | 600mm | 37kw | 11kw |
| W11Y-30*2000 | 30mm | 2000mm | 380mm | 300mm | 480mm | 22kw | 7.5kw |
| W11Y-30*2500 | 30mm | 2500mm | 410mm | 235mm | 380mm | 30kw | 11kw |
| W11Y-30*3000 | 30mm | 3000mm | 450mm | 390mm | 600mm | 37kw | 11kw |
| W11Y-40*2500 | 40mm | 2500mm | 500mm | 400mm | 600mm | 37kw | 15kw |
| W11Y-40*3000 | 40mm | 3000mm | 540mm | 4400mm | 600mm | 45kw | 18.5kw |
