Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: GSD-4000
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Machine Width: |
4000mm (acceptable Customized) |
Effective Cutting Width: |
3000mm (acceptable Customized) |
Rail Length: |
14000mm (acceptable Customized) |
Effective Cutting Length: |
12000mm (acceptable Customized) |
Idle Running Speed: |
4000-10000mm/min |
Cutting Surface Roughness: |
Ra≤50μm |
Support Software: |
Autocad/ Solidworks/ CAXA Etc |
Machine Width: |
4000mm (acceptable Customized) |
Effective Cutting Width: |
3000mm (acceptable Customized) |
Rail Length: |
14000mm (acceptable Customized) |
Effective Cutting Length: |
12000mm (acceptable Customized) |
Idle Running Speed: |
4000-10000mm/min |
Cutting Surface Roughness: |
Ra≤50μm |
Support Software: |
Autocad/ Solidworks/ CAXA Etc |

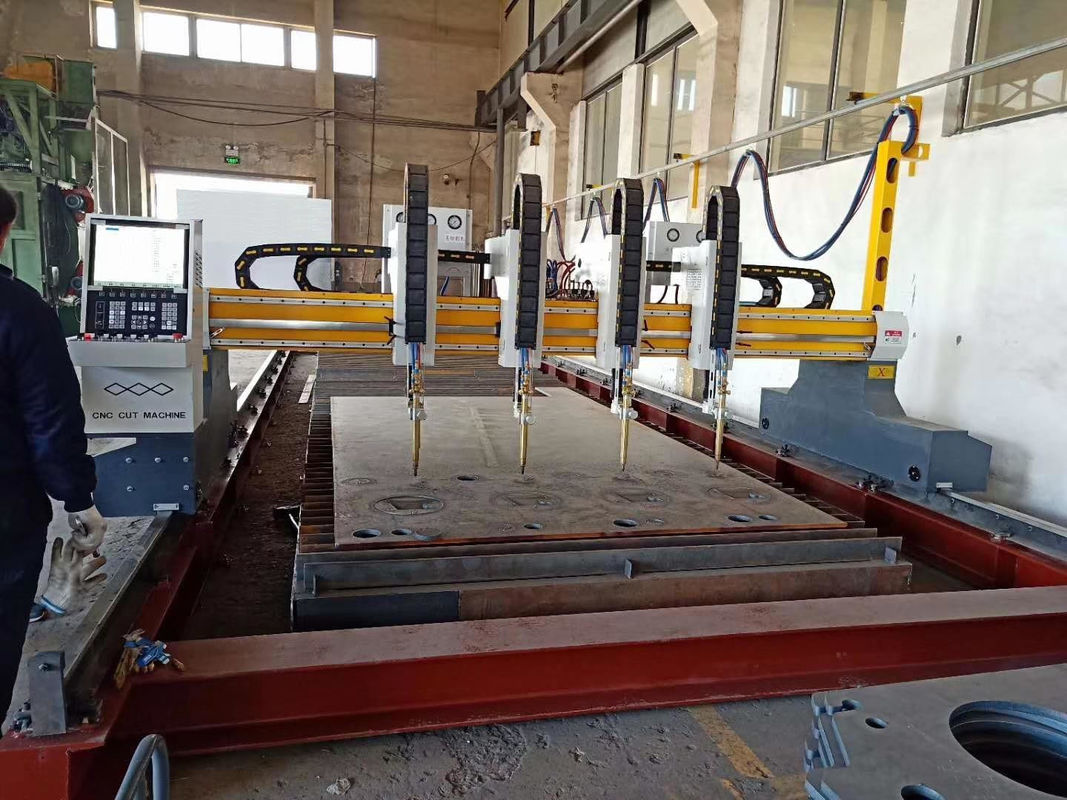

GSD-4000 CNC plasma & flame cutting machine
1. Technical parameters
| No. | Item | Specification |
| 1 | Machine width | 4000mm (acceptable customized) |
| 2 | Effective cutting width | 3000mm (acceptable customized) |
| 3 | Rail length | 14000mm (acceptable customized) |
| 4 | Effective cutting length | 12000mm (acceptable customized) |
| 5 | Plasma cutting torch | Depend on plasma power capacity |
| 6 | Plasma power | 1 set |
| 7 | Arc pressure height controller | 1 set |
| 8 | CNC flame cutting torch | 1 set (6-80mm cutting thickness) |
| 9 | Multiple strip cutting torch | 5 sets (6-80mm cutting thickness for single torch) |
| 10 | Control switch | Some |
| 11 | Idle running speed | 4000-10000mm/min |
| 12 | Cutting surface roughness | Ra≤50μm |
| 13 | Driving method | Double sides driven (servo motor) |
2. Configuration list
| No. | Item | Brand |
| 1 | Main framework | FSM, China |
| 2 | Longitudinal guide rail | Tongyong, China |
| 3 | Horizontal guide rail | Kaiyade, China |
| 4 | Control system | Beijing Start or Shanghai Jiaoda, China |
| 5 | Cutting torch lift device | FSM, China |
| 6 | Servo motor | Panasonic, Japan |
| 7 | Planet gear reducers | Zhongda, China |
| 8 | Solenoid valve | CEME, Italy |
| 9 | Plasma power source | Huayuan, China or Hypertherm, USA |
| 10 | Plasma cutting torch | Huayuan, China or Hypertherm, USA |
| 11 | CNC flame cutting torch | Xiangzheng or Laisen, China |
| 12 | Multiple strip cutting machine | Xiangzheng or Laisen, China |
| 13 | Arc pressure height controller | HYD or Ontime, China |
| 14 | Pipeline | SAM, Korea |
| 15 | High strength bearing | HRB, China |
| 16 | Programming software | StarCAM, China |
