Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: CWR-5 - CWR-500
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
Pipe Diameter Range: |
Φ250-2300mm |
Loading Capacity: |
5tons To 1200ton |
Rubber Roller: |
Φ250*100mm |
Metal Roller: |
2*Φ240*20mm |
Name: |
Pipe Welding Rotator |
Feature: |
Self Aligning Type |
Pipe Diameter Range: |
Φ250-2300mm |
Loading Capacity: |
5tons To 1200ton |
Rubber Roller: |
Φ250*100mm |
Metal Roller: |
2*Φ240*20mm |
Name: |
Pipe Welding Rotator |
Feature: |
Self Aligning Type |

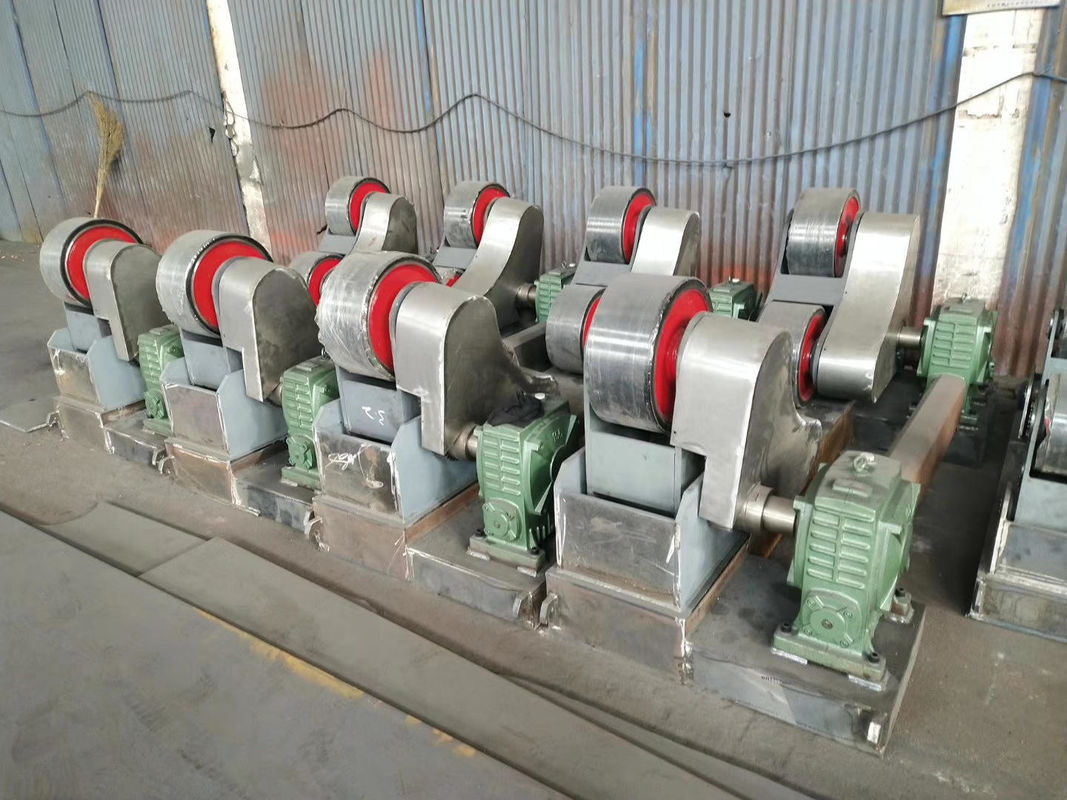

Pipe welding rotator/ Welding turning roller (self aligning type)
1. Introduction
Self aligning series welding rotator is widely used in metal tank circular seam automatic welding, it designed for pressure vessel automatic welding indispensable special equipment. The equipment consists of active rotator and passive rotator, rotator's tilt angle can be automatic adjust with the work-piece, the work-piece range is wide, with reliable quality, stable performance and simple operation etc.
2. Technical parameters
| Model | Loading capacity | Pipe diameter range | Roller dimension | Motor | |
| Rubber roller | Metal roller | ||||
| SWR-5 | 5tons | Φ250-2300mm | Φ250*100mm | 2*Φ240*20mm | 0.75kw |
| SWR-10 | 10tons | Φ320-2800mm | Φ300*120mm | 2*Φ290*25mm | 1.5kw |
| SWR-20 | 20tons | Φ500-3500mm | Φ350*120mm | 2*Φ230*30mm | 2.2kw |
| SWR-40 | 40tons | Φ600-4200mm | Φ400*120mm | 2*Φ390*40mm | 3kw |
| SWR-60 | 60tons | Φ750-4800mm | Φ450*120mm | 2*Φ440*50mm | 4kw |
| SWR-80 | 80tons | Φ850-5000mm | Φ500*120mm | 2*Φ490*60mm | 4kw |
| SWR-100 | 100tons | Φ1000-5500mm | Φ500*120mm | 2*Φ490*80mm | 5.5kw |
| SWR-150 | 150tons | Φ1000-6000mm | / | Φ500*220mm | 6kw |
| SWR-200 | 200tons | Φ1800-8000mm | / | Φ550*260mm | 7.5kw |
| SWR-250 | 250tons | Φ1800-8000mm | / | Φ660*260mm | 11kw |
| SWR-500 | 500tons | Φ1800-8000mm | / | Φ800*300mm | 15kw |
