Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: Q35Y
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Customized
Packaging Details: Wooden box, Standard Sea Packing
Delivery Time: 20 To 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 5-30 Sets Per Month
NAME: |
Q35Y Series Hydraulic Iron Workers |
Pressure: |
60tons TO 145tons |
Shearing Thickness: |
16MM TO 30MM |
Ram Stroke: |
80mm |
NAME: |
Q35Y Series Hydraulic Iron Workers |
Pressure: |
60tons TO 145tons |
Shearing Thickness: |
16MM TO 30MM |
Ram Stroke: |
80mm |

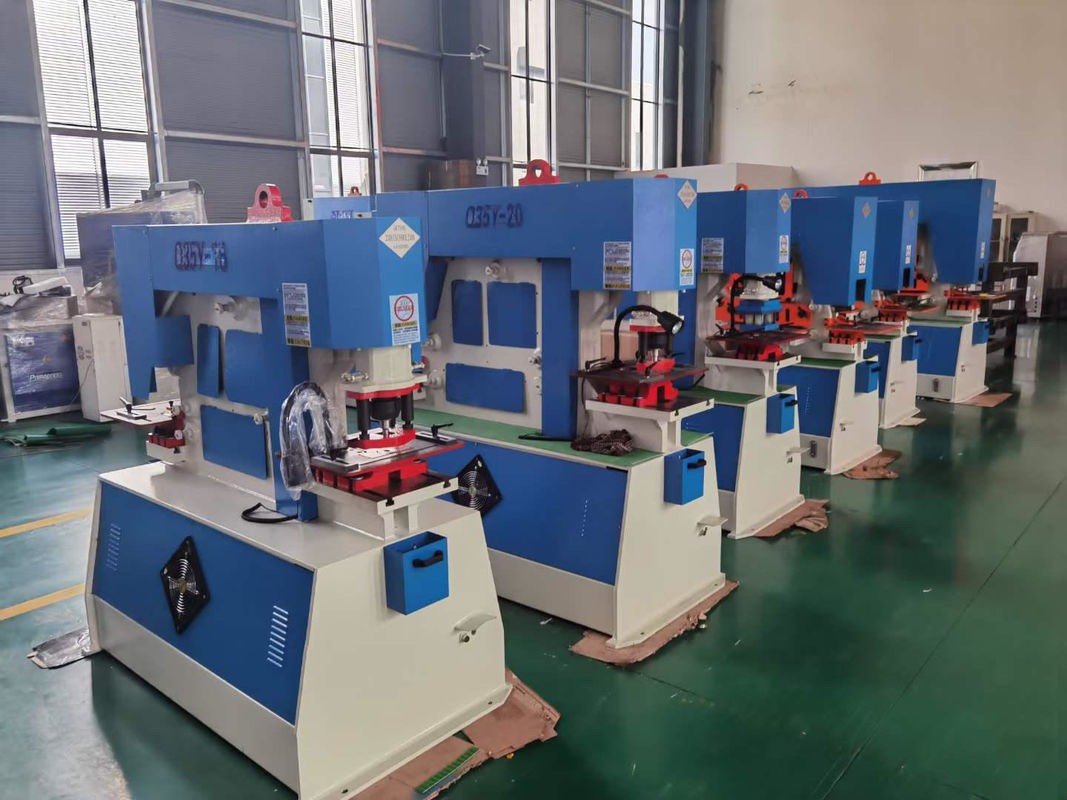

Q35Y series hydraulic iron workers
1. Introduction
● Main machine is include chassis, frame, support shelf, angle shelf, shearing worktable. Chassis and frame is be welded and connected with bolt to ensure the strength during the working processing
● Complete blade design, for shearing angle/ round steel/ square steel/ flat steel/ steel sheet, if change mold it also can shearing channel and i beam
● Punching head with fast screw to fixed on the bottom of oil cylinder piston rod, very easy to replace mold
● With good hydraulic component and sealing
● Overload and overflow safety protection function
● Electrical components is from Schneider or Chint
● 3P AC to supply power, control circuit voltage is supplied from transformer, DC power of circuit solenoid valve is supplied from transformer and silicon rectifier
2. Technical parameters
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Pressure | 60tons | 90tons | 115tons | 145tons |
| Shearing thickness | 16mm | 20mm | 25mm | 30 |
| Strength | 450N/mm2 | 450N/mm2 | 450N/mm2 | 450N/mm2 |
| Shearing size of one stroke |
16*250mm 8*400mm |
20*330mm 10*480mm |
25*300mm 16*600mm |
30*335mm 20*600mm |
| Ram stroke | 80mm | 80mm | 80mm | 80mm |
| Stroke times | 12-28 per min. | 18-30 per min. | 9-18 per min. | 8-16 per min. |
| Throat depth | 300mm | 355mm | 400mm | 600mm |
| Punching depth | 16mm | 20mm | 25mm | 28mm |
| Punching diameter | 25mm | 30mm | 35mm | 38mm |
| Motor | 7.5kw | 7.5kw | 7.5kw | 11kw |
| Dimension | 1.7*0.75*1.8m | 1.95*0.9*1.95m | 2.35*0.9*2.0m | 2.8*1.1*2.5m |
| Weight | 1800kgs | 2200kgs | 4800kgs | 6200kgs |
