Product Details
Place of Origin: China
Brand Name: FSM
Certification: CE, ISO
Model Number: SJ-40
Payment & Shipping Terms

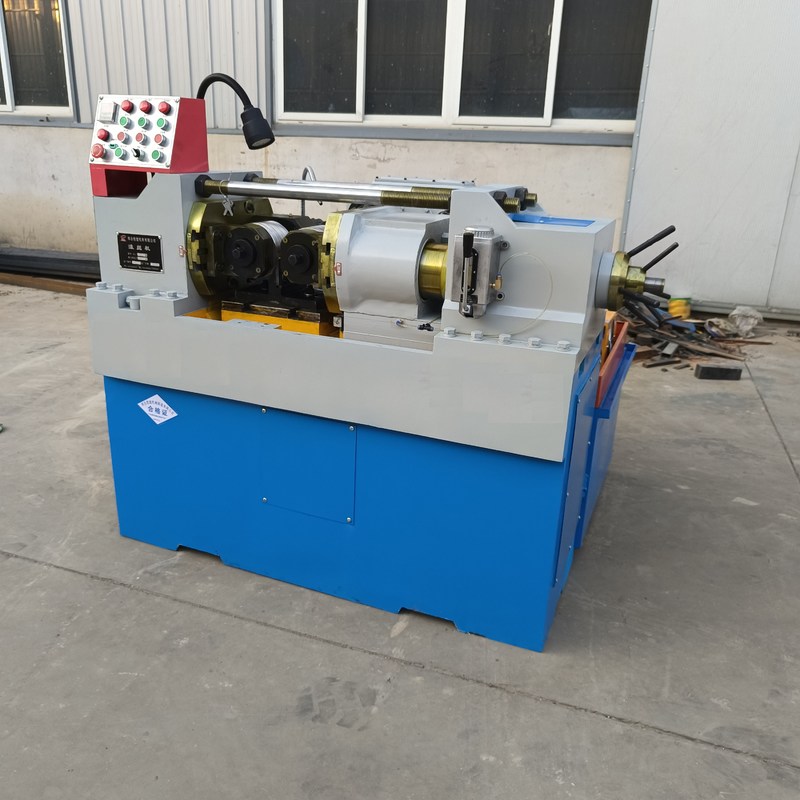

steel bolt threading machine is a device used to create threads on steel bolts. It automates the process of cutting threads onto the shaft of a bolt, ensuring precision and efficiency. These machines are commonly used in manufacturing and construction industries where large quantities of bolts with consistent threading are required.
It is designed for threading 10-40mm diameter in cold processing, with spiral threading wheel is possible to processing fixed thread/ wire boom thread. It is welded by steel plate, and with a high strength structure, easy to operate.
|
No. |
Item |
Specification |
|
|
1 |
Maximum threading diameter |
10-40mm |
|
|
2 |
Threading wheel (Cr12MOV) |
Outer diameter |
120-170mm |
|
Hole diameter |
54mm |
||
|
Section width |
100mm |
||
|
3 |
Maximum threading capacity |
150KN |
|
|
4 |
Main axis inclination angle |
±5° |
|
|
5 |
Main axis rotation |
37/ 46/ 63/ 79rpm |
|
|
6 |
Mechanical transmission motor |
5.5KW |
|
|
7 |
Hydraulic transmission motor |
2.2KW |
|
|
8 |
Hydraulic auto feeding time/ cease time |
0.1-99.9s |
|
|
9 |
Cooling pump |
90W |
|
|
10 |
Dimension |
1500*1550*1350 |
|
|
11 |
Weight |
1800kgs |
|
