Product Details
Place of Origin: China
Brand Name: FSM
Certification: CE, ISO
Model Number: DC-30
Payment & Shipping Terms

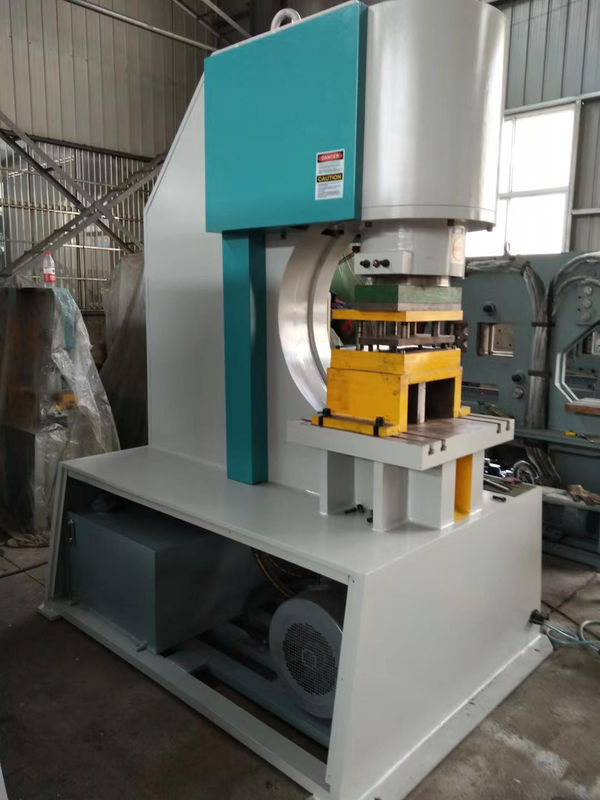

DC-30 Hydraulic Punching Machine
1. Introduction
It is driven by hydraulic, low noise and safety operate. It is able to punching plate (within 300mm length), angle, channel and other kinds of steel. The punching model is able to replace according to different punching holes.
2. Technical parameters
| No. | Item | Specification | |
| 1 | Punching force | 160tons | |
| 2 | Punching information | Maximum sheet thickness | 30mm |
| Maximum diameter | 35mm | ||
| Throat depth | 600mm | ||
| Cylinder stroke | 80mm | ||
| Stroke times | 8times/min | ||
| 3 | Sheet strength | 450N/mm2 | |
| 4 | Oil tank (46# hydraulic oil) | 200L | |
| 5 | Motor | 11KW | |
| 6 | Overall dimension | 1840*1040*2200mm | |
| 7 | Weight | 3200kgs | |
3. Technical documents
● Manual book
● Shipping list
● Electrical diagram
